Brake Brake 17 Karma

By Brake Brake 17

SFr. 990.00

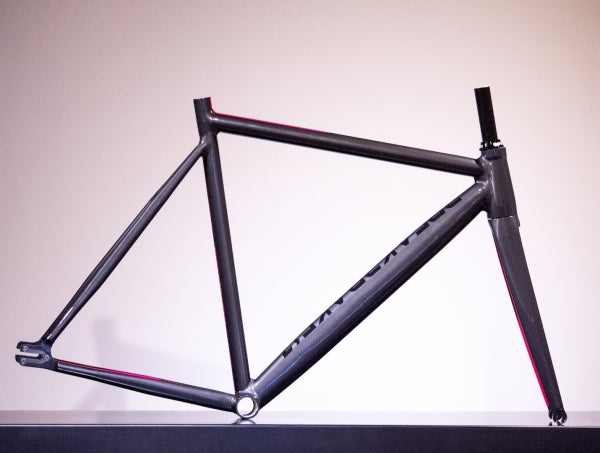

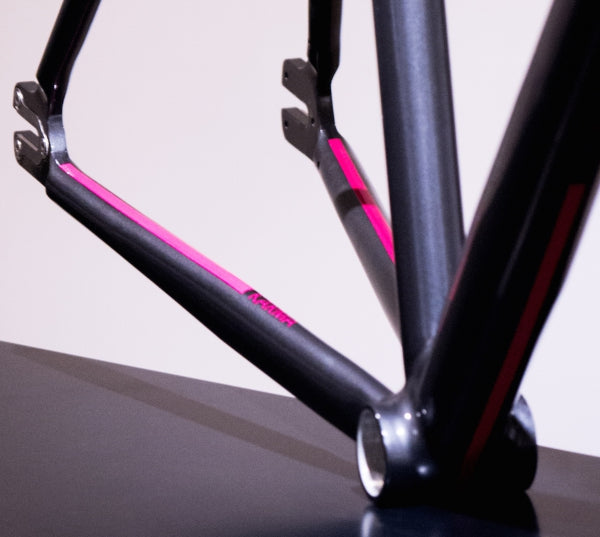

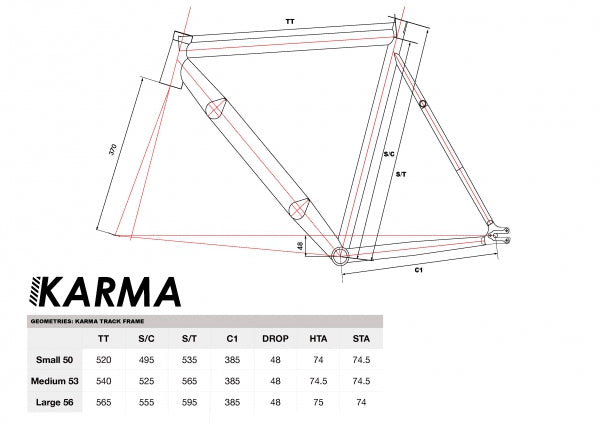

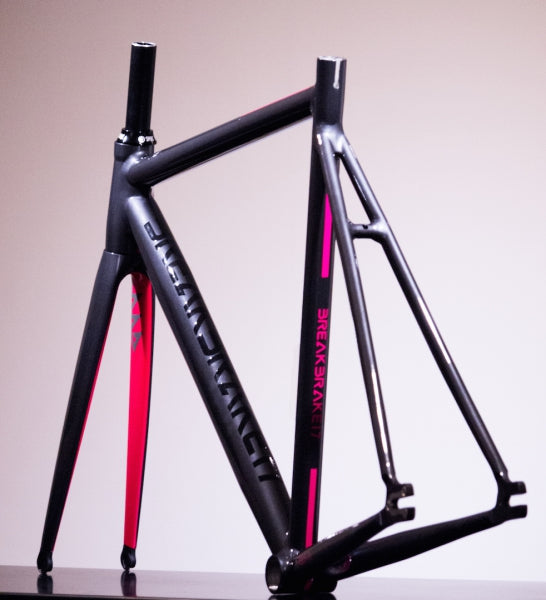

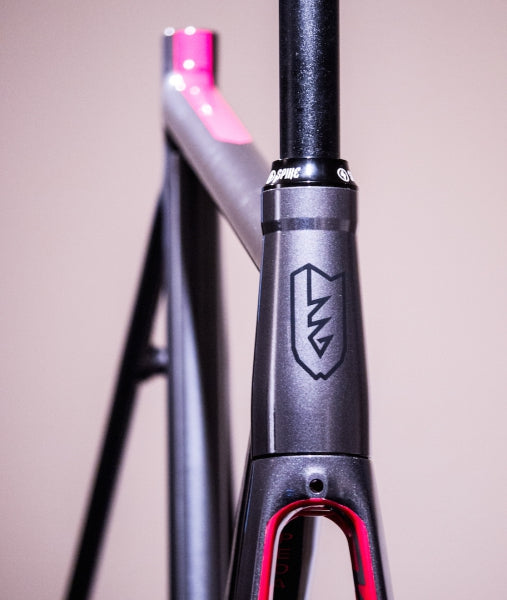

This year's version of the Karma continues to be based on modern track geometry - a short wheelbase and steep angles enable agile yet comfortable handling in the city. The triple-butted 7005-T6 aluminum tube set makes the frame even lighter without sacrificing rigidity. The tapered head tube with larger bearing diameter on the lower side also ensures high rigidity. The round aero down tube and the unique butted seat stays filter shocks from the road for a controlled and comfortable ride. In addition, this machine has been given an incredibly beautiful and individual paint job this year, so that the design is in no way inferior to the high functionality.
  • Manufacturer: Breakbrake 17
  • Model: Karma 2016 frameset
  • Frame material: 7005-T6 Triple Butted Aluminium

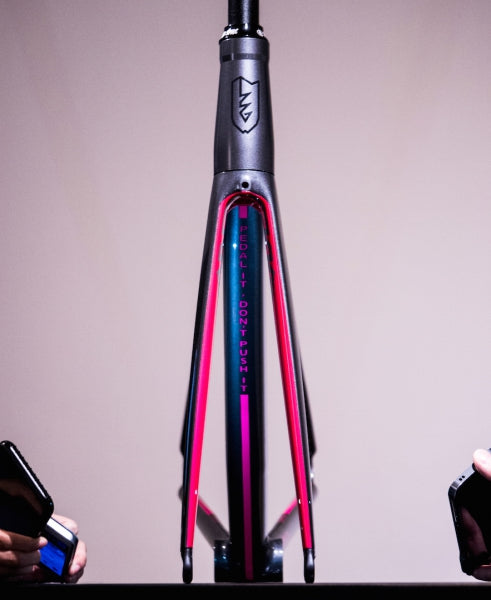

  • Material fork: aluminum/carbon 1 1/8" - 1 ½" (tapered)
  • Tax rate: Integrated
  • Bottom bracket: BSA 68mm English
  • Seat post diameter: 27.2mm
  • Installation width: front 100mm/ rear 120mm
  • Color: Metallic Black
  • Frame weight: 1460g (medium)
  • Scope of delivery: frame, fork, headset and 7075 CNC seat clamp
  • Sizes: S, M, L

Our friend Yang from BreakBrake17 sent over a beautiful shot of their Karma frame. We have seen a few of these around and to be honest they are beautiful. With so many cheaply built frames hitting the market daily using shit tubing it is a breath of fresh air knowing that breakbrake is taking pride in their product.

“The BB17 Karma track frame geometry was inspired from the modern track racing bike, features like short wheelbase, responsive but also stable and comfortable. The frame is an ideal bike for urban track riders.

7005-T6 Triple Butted tubes makes the frame lighter and stiff to give you control to transferring all your power to the road. ROUND-AERO down tube sharp and unique tapered seat stays to dissipate road shock for a smooth ride.”
